Tuffy®II side-mounted float switch

The Tuffy® II buoyancy level switches are float-actuated devices designed for horizontal mounting in a tank or vessel through threaded or flanged pipe connections. The compact size allows for installation in small vessels, while its many features provide a variety of application uses. The single switch mechanism is available in SPDT or DPDT forms on units designed for fixed or adjustable, narrow or wide differential and interface service levels.
Float level switches technology

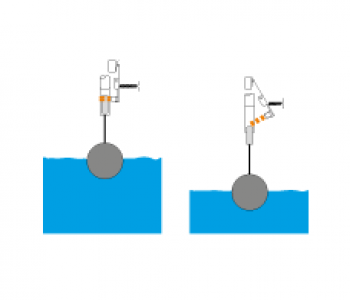

All float operated liquid level controls operate on the basic buoyancy principle which states "the buoyancy force action on an object is equal to the mass of liquid displaced by the object." As a result, floats ride on the liquid surface partially submerged and move the same distance the liquid level moves. Because of this, they are normally used for narrow level differential applications such as high level alarm or low level alarm.

Features

  • Single electric switch for high or low level alarm or control functions
  • Spacious switch wiring compartment
  • Pressure ratings to 2625 psig (181 bar)
  • Process temperatures to +750 °F (+400 °C)
  • NACE and/or ASME B31.3 construction
  • Specific gravity as low as 0.40

Options

  • Narrow or adjustable level differential
  • Silver or gold switch contacts
  • SPDT or DPDT dry contact or hermetically-sealed switches
  • External mounting chambers
  • Hastelloy C wetted parts

Operating principle

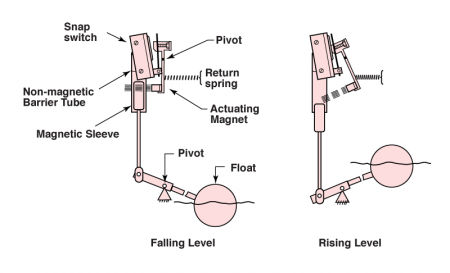

The TUFFY II achieves switching action through the use of repelling magnets on the float assembly and the switch mechanism. Separating the two magnets is a nonmagnetic pressure barrier.

The float follows the liquid level as it changes, causing the attached float magnet to move into the field of the switch magnet. The like poles of these magnets repel each other causing the switch magnet to change position, actuating the switch.


Approvals

ATEXEx d, Ex ia
CSAXP
FMXP
EAC (GOST)Ex d, Ex ia
IECEx d, Ex ia
NEPSIEx d
SILSIL 2 (1oo1)
TÜV/DIBtWHG § 63, overfill prevention
Other approvals are available. Consult factory for more details.
