The product

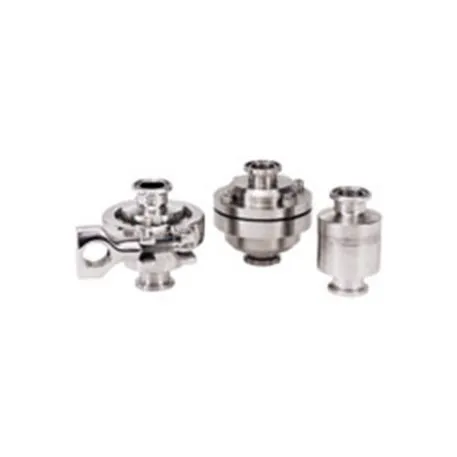

Armstrong offers a complete range of TC Series traps to handle the special requirements of clean steam systems. Different body configurations are available for choice of piping and ease of cleaning.
The TC Series traps are constructed from 316L stainless steel for corrosion resistance and are highly polished for cleanability. Compact and lightweight, the traps are self-draining to minimize contamination. They are easy to install and can be easily disassembled for cleaning.
Product Specifications
| Model | TC-C & TC-R | TC-S |
| Capacities To | 3775 lb/hr (1712 kg/hr) | 3775 lb/hr (1712 kg/hr) |
| Maximum Allowable Pressure | 120 psig (8 bar) | 150 psig (10 bar) |
| Maximum Allowable Temperature | 350°F (117°C) | 366°F (186°C) |
| Body Material | ASTM A479 316L Stainless Steel | ASTM A479 316L Stainless Stee |
| Maximum Operating Pressure | 100 psig (7 bar) | 120 psig (8 bar) |
| Connection Type | Sanitary Threaded Tube End | Sanitary Threaded Tube End |
| Connection Size | 1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) | 1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) |
Certifications
- PED
