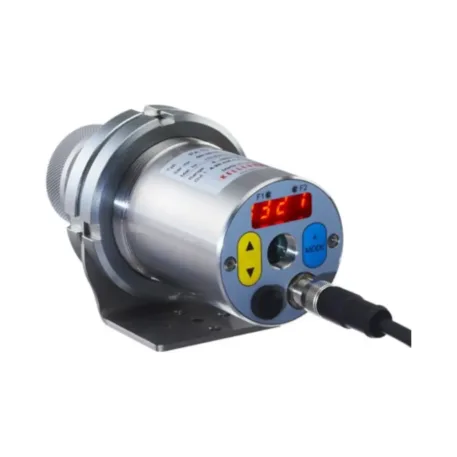

Optical Pyrometer - CellaCombustion® PX 47 (700 – 1700 °C)

The CellaCombustion PA 47 is a special pyrometer for non-contact temperature measurement of sooty flames in coal-fired power stations and incineration plants. The measurement and signal processing, both based on the two-colour method, detect the heat radiation of the soot emitting particles of the flame in the near infrared range at two wavelengths. In order to correct the influence of the wavelength-dependent radiation properties of the soot particles and the optical density of flames, a special algorithm is used during the temperature determination. The flame temperature can be used to optimize burnout in the furnace operation, reduce pollutant emissions and minimize slagging of the combustion chamber walls.

request quote

The product

Special features:

  • Measuring range 700 to 1,700 °C

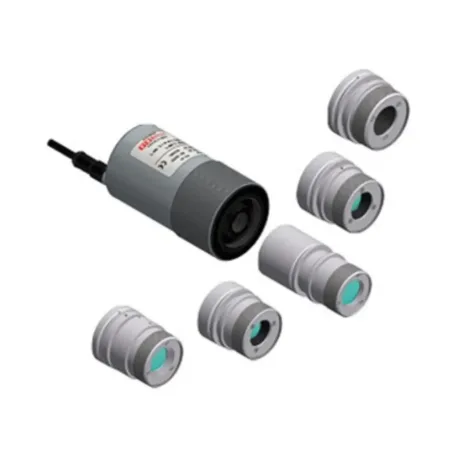

  • focusable lenses for exact adjustment of the measuring distance
  • broadband anti-reflective precision lens
  • LED display can be read from a great distance
  • test current output for the diagnostic function
  • standard feature: digital input/output as well as two analogue outputs and USB/RS 485 interface
CellaCombustion   PA 47 AF 1 /D
Measuring   range
700 –   1700 °C
Focus   distance
0,4 m –   ∞
Shape of   the measuring field
Distance   ratio
80 :   1
PZ   20.01
Measuring   principle

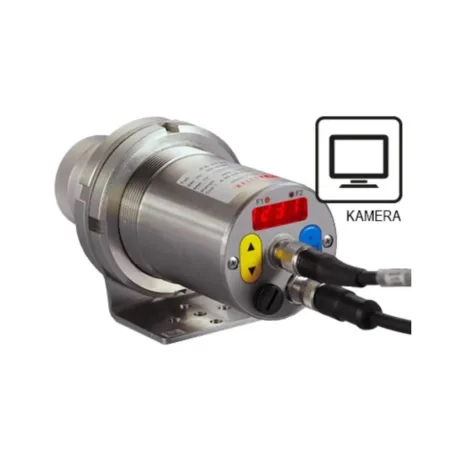

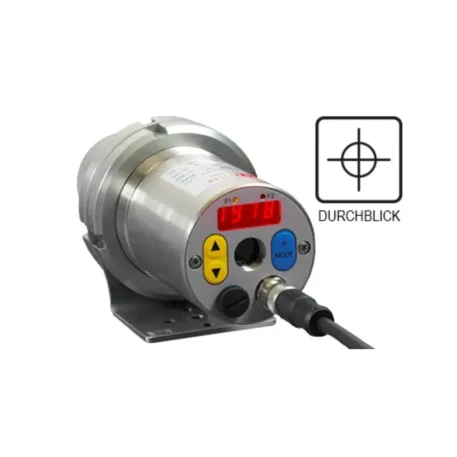

Sighting   option
