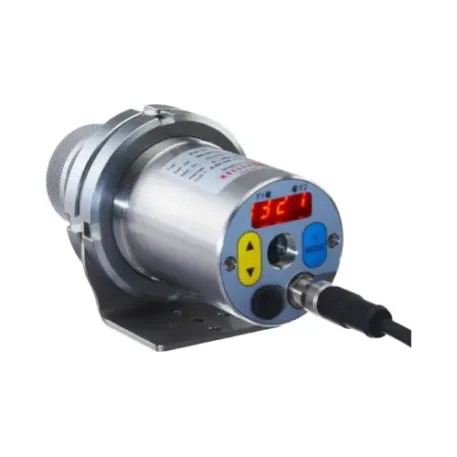

Optical Pyrometer - CellaWafer® PA 38 (450 – 1800 °C)

The CellaWafer PA 38 is a digital pyrometer for measuring temperature of wafers from 450 to 1,800 °C. Due to its very short-wave and narrow-band measuring wavelength, this pyrometer is particularly suitable for measurements on silicon wafers and metals (tungsten, molybdenum,..). Furthermore, it reacts insensitively to changes in the emissivity of the measuring object.

request quote

The product

Special features:

  • Measuring range 450 to 1800 °C
  • focusable interchangeable lenses for exact adjustment of the measuring distance
  • broadband anti-reflective precision lenses
  • short-wave and narrow-band spectral range
  • particularly suitable for precise measurements on metals and on silicon wafers
  • LED display can be read from a great distance
  • test current output for the diagnostic function
  • standard feature: analogue output and USB/RS 485 interface

Version

CellaWafer   PA 38 AF 10 /D

Measuring   range

450 –   1800 °C

Focus   distance

0,3 m –   ∞

Shape of   the measuring field

round

Distance   ratio

40 :   1

Objective

PA   20.08

Measuring   principle

one-colour

Sighting   option

Through-the-lens-sighting
request quote
