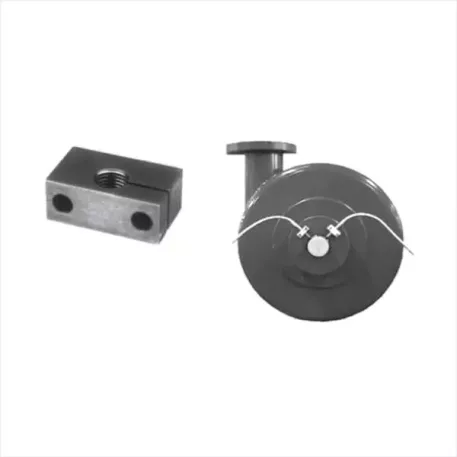

7646 Probe Mounting Bracket

Model: 7646
Slotted bracket clamps probe securely in tapped hole. No jam nut required. Material: anodized aluminum or phenolic. Mounting holes are 7.1mm (.28) diameter, spaced 22.2 mm (0.875) on centers. 1/4” or 6 mm bolts recommended, not included.

Product Aprox. Weight: 0.25 kg (0.5 lb)

ModelThreadsModels Used With
AluminumPhenolic
7646-0017646-1013/8" - 24Any forward mount probe with these threads
7646-0027646-1021/4" - 28
7646-0037646-103M8 x 1
7646-0047646-104M10 x 1
