The product

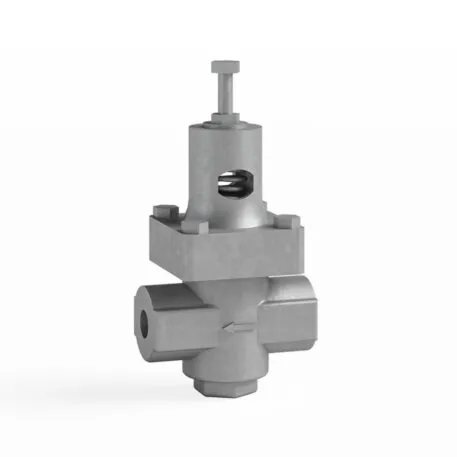

The GD-45 is a compact, high-performance direct-acting valve. Inexpensive to buy and use, it is ideal for those moderate-flow applications that do not justify the higher cost of pilot-controlled valves. The GD-45 is well suited for laundry and dry-cleaning equipment, hospital equipment, tire molds, humidifiers, small heaters and applications in food processing.
Features
- Quick, easy installation
- Lightweight and compact
- Constructed of ductile iron for greater durability and higher inlet pressure
- Screwed connections
- No external sensing lines or parts required
- Maximum turndown ratio 10:1
- ANSI Class IV
Product Specifications
| Model | GD-45 |
| Fluid | Steam, Air, Non-Corrosive Gasses |
| Connection Type | NPT |
| Maximum Allowable Pressure | 300 psig (20 barg) |
| Maximum Allowable Temperature | 450°F (232°C) |
| Body Material | Ductile Iron ASTM A536 |
| Maximum Operating Pressure | 300 psig (20 bar) |
| Connection Size | 1/2″ (15 mm), 3/4″, (20 mm), 1″ (25 mm) |
