The product

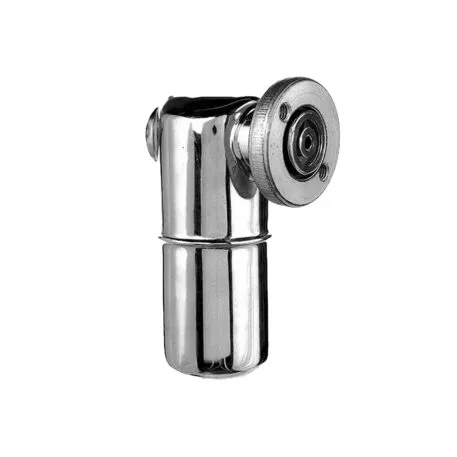

2000 Series Inverted Bucket Steam Traps are all stainless steel with a 360° connector. The 2000 Series steam traps combine savings in three important areas: energy, installation and replacement. The 360° universal connector provides quick, easy in-line replacement along with all the proven advantages of inverted bucket operation.
FEATURES
- A sealed, tamperproof package
- A compact, lightweight trap
- The ability to withstand freeze-ups without damage
- Exceptional corrosion resistance
- A three-year guarantee against defects in materials or workmanship
Also available with optional IS-2 integral strainer connector.
Model 2011N available with non-metallic valve seat.
Product Specifications
| Model | 2010 | 2011 | 2022 |
| Maximum Capacity | 500 lb/hr (227 kg/hr) | 860 lb/hr (390 kg/hr) | 1300 lb/hr (590 kg/hr) |
| Maximum Allowable Pressure | 400 psig @ 800°F (28 bar @ 427°C) | 400 psig @ 800°F (28 bar @ 427°C) | 650 psig @ 600°F (45 bar @ 316°C) |
| Maximum Allowable Temperature | 800°F (427°C) | 800°F (427°C) | 600°F (316°C) |
| Body Material | ASTM A240 Grade 304L Stainless Steel | ASTM A240 Grade 304L Stainless Steel | ASTM A240 Grade 304L Stainless Steel |
| Maximum Operating Pressure | 200 psig (14 bar) | 400 psig (28 bar) | 650 psig (45 bar) |
| Connection Type | 2-Bolt Screwed Socketweld Flanged | 2-Bolt Screwed Socketweld Flanged | 2-Bolt Screwed Socketweld Flanged |
| Connection Size | 3/8″ (12 mm) 1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) | 3/8″ (12 mm) 1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) | 3/8″ (12 mm) 1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) |
Certifications
- CRN
- EIL
- IBR
- NIBR
- PED
