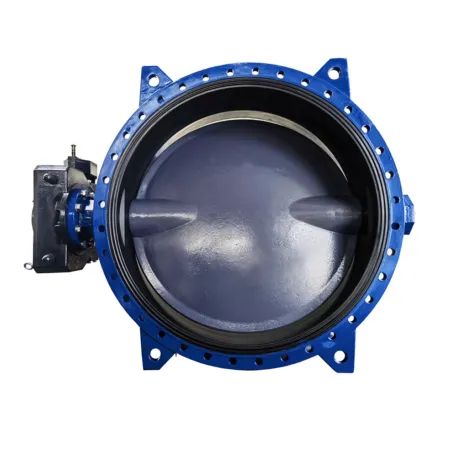

Resilient Seated Butterfly Valve Series 7200

Series 7200 resilient seated butterfly valves are very reliable valves for tight shut off applications.

The product

These valves are suitable for major it yof applications. Having years of field application, expertise and successful development of full range of high performance butterfly valves, dembla has developed series 7200 valves to meet the economical solutions for today’s fluid process industry.

Size & Rating

PN 6	100 Inch \| DN 2500
PN 10	80 Inch \| DN 2000
PN 16	40 Inch \| DN 1000
PN 25	24 Inch \| DN 600
#150	40 Inch \| DN 1000
#300	30 Inch \| DN 750

Features

Reliable & Effective Tight Shut-Off
Minimum Wear Of Rubber Lining During Opening/ Closing
Suitable For Vacuum Application
Renewable Seats

Standards

Design	F/F	Testing	End Connection
ASME-B-16.34 EN 593 / API 609	BS-5155	BS-6755 Part-1/API-598/EN-12266	FLANGE/WAFER-B16.5,EN1092-1

Specifications

Sizes	DN 50 – DN 750 (2″- 30″) (With replaceable Seat) DN 600 – DN 2000 (24″ – 80″) (With Bonded / Lined Seat)
Ratings	PN6, PN10, PN16, ANSI 150#
Temperature Range	-340^oC to + 150^oC
Face to Face	EN 558 / API 609 BS 5155
End Connection	Wafer Lug Flange
Top Flange	ISO 5211

Application Industries

Power Plants
Water

request quote

tables

Material

DUCTILE IRON	CAST IRON	CARBON STEEL	SG IRON	COATING	LINING
A356 Gr. 65-45-12, GGG40/50, D2 Ni	A 126 Class B	A 216 Gr. WCB	GGG40, GGG50, GGG60, GGG70, GGG80	FUSION BONDED EPOXY COATING	EBONITE LINING
