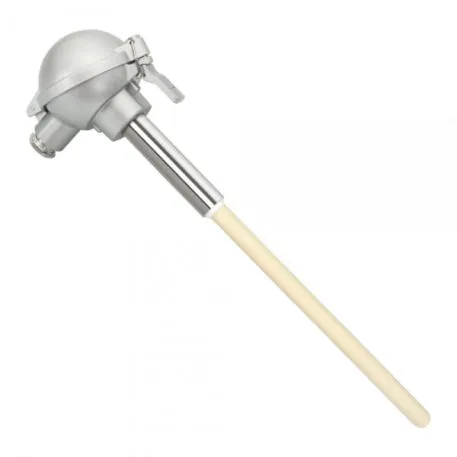

LAMI - R / S / N / K Series
The Alutal LAMI series - R / S / N / K is especially designed for use in the rolling process in steel where temperatures can get up to 1250 ° C.
In its manufacturing, Alutal uses highly pure alumina ceramic pipe and very low porosity, demonstrably superior to conventional market models.
Head Tipper practicality in High Temperature maintenance!
In its manufacturing, Alutal uses highly pure alumina ceramic pipe and very low porosity, demonstrably superior to conventional market models.
Head Tipper practicality in High Temperature maintenance!
SAFTEMP - Sapphire sensor protection
The protection of sensor with encapsulation sapphire - SAFTEMP of Alutal ensures high resistance to temperature due to its optical transparency and no porosity. With excellent electrical insulation properties and numerous applications, sapphire extends greatly the life of the sensors as compared to conventional ceramic protections.
SAFTEMP and check out more advantages www.alutal.com.br/safira
The protection of sensor with encapsulation sapphire - SAFTEMP of Alutal ensures high resistance to temperature due to its optical transparency and no porosity. With excellent electrical insulation properties and numerous applications, sapphire extends greatly the life of the sensors as compared to conventional ceramic protections.
SAFTEMP and check out more advantages www.alutal.com.br/safira

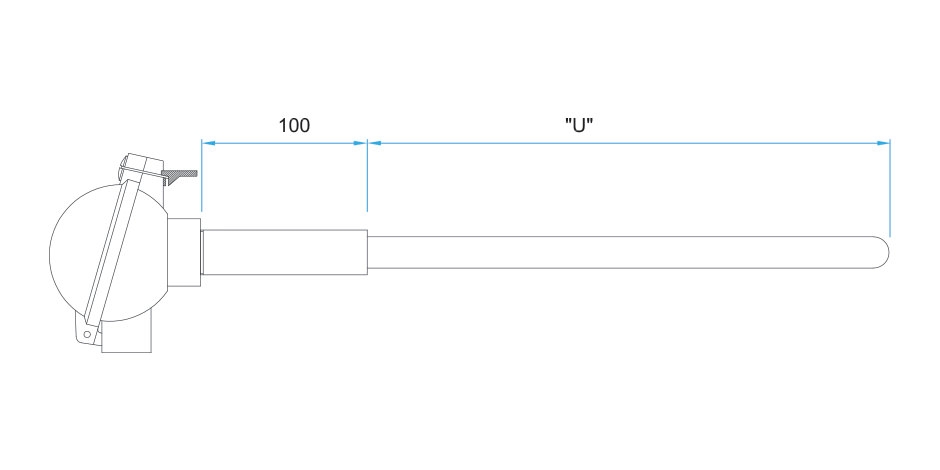

Technical Diagrams
Série LAMI - R / S / N / K
Tables
Tabela Especificação em Português / Specifications Table in English
| Prefixo | Proteção Cerâmica | Comprimento Sensor (mm) |
Cabo | Comprimento Cabo (mm) |
Opções |
| LAMI | K – Cromel / Alumel N – Nicrosil / Nisil R – Platina 13% Rhodio / Platina S – Platina 10% Rhodio / Platina |
Especificar | NX - Sem cabo FF - Fibra x Fibra, Bitola 2 x 24 AWG SF - Em Silicone x Fibra de vidro, Bitola 2 x 18 AWG |
Especificar | RBC - Certificado de calibração em 3 pontos CCG - Conector cerâmico polarizado macho grande |
| Prefix | Ceramic Protection | Sensor Length (mm) | Cable | Cable Length (mm) | Options |
| LAMI | K - Chromel / Alumel N - nicrosil / nisil R - Platinum 13% Rodio / Platinum S - Platinum 10% Rhodio / Platinum | To specify | NX - No cable FF - Fiber x Fiber Gauge 2 x 24 AWG SF - In Silicon x Fiberglass, Gauge 2 x 18 AWG | To specify | RBC - Certificate calibration in 3 points CCG - Ceramic Connector Polarized large male |
Certificates
Alutal performs tests in all stages of the production process of its sensors. Check below the tests and certifications applicable for this series. If you want to get a copy of the tests for the lot of your purchase, request with the commercial department at the time of your order.
Certificates for this series:
