The product

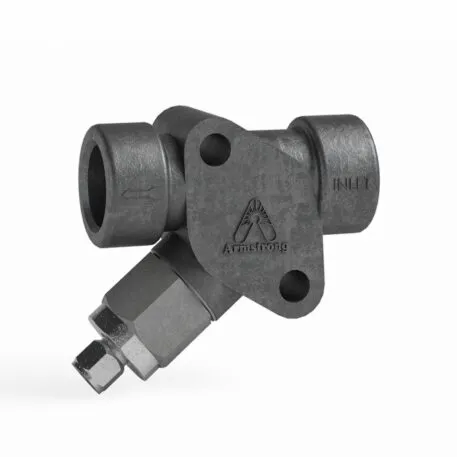

Compact and lightweight, the IS-2 Stainless Steel Universal Connector with Integral Strainer makes installation and removal of any two-bolt steam trap quick and easy. Additionally, the full line stainless steel strainer eliminates leak points, and is available with an optional blowdown valve.
The The IS-2 Universal Connector with Integral Strainer can be used on Armstrong two-bolt inverted bucket, thermostatic, disc, bimetallic, and float and thermostatic trap. Also accommodates other manufacturer’s two-bolt steam traps.
Product Specifications
| Model | IS-2 |
| Maximum Allow Pressure | 830 psig (57.2 barg) @ 800°F (427°C) 1400 psig (96.5 barg) @ 100°F (38°C) |
| Connection Size and Flow Direction | 1/2″ (15 mm) flows left to right or right to left 3/4″ (20 mm) flows left to right or right to left 1″ (25 mm) only flows right to left |
Certifications
- CRN
- EIL
