APT Series - Sensor with handle and Tip for Penetration
APT Series and APTR Thermocouples and Resistance Thermometers of Alutal were developed specifically for applications where temperature measurement inside the food is required.
Being built with a handhold in special polymer, these sensors can be washable and have excellent resistance to the penetration impact.
Being built with a handhold in special polymer, these sensors can be washable and have excellent resistance to the penetration impact.
Having the body made of stainless steel, these probes do not contaminate the food to be measured and can be used on tracks of -40ºC to +700°C. The cable connection to the sensor, with resistant teflon cover up to 200 ° C, is easily connected to any measuring instrument through a Miniature Connector Thermocouple.
THERMOMETERS AND SENSORS CAN BE SUPPLIED WITH CALIBRATION RBC AND INMETRO CERTIFICATE .
THERMOMETERS AND SENSORS CAN BE SUPPLIED WITH CALIBRATION RBC AND INMETRO CERTIFICATE .

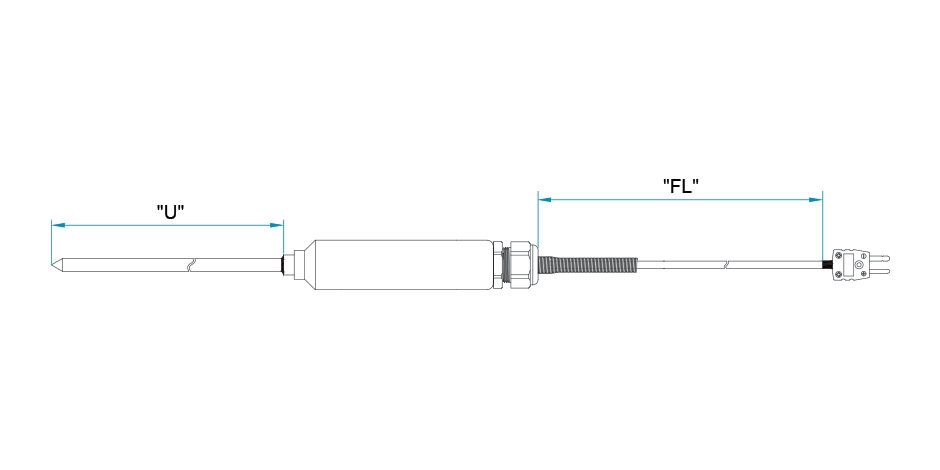

Technical Diagrams
Termopar de Isolação Mineral Tipo “K” Simples
Tables
Tabela Especificação em Português / Specifications Table in English
| Prefixo | Calibração | Diâmetro Haste (mm) |
Comprimento Haste (mm) |
Comprimento Cabo (mm) |
Armadura do Cabo |
Certificação de Calibração RBC |
| APT K | Termopar K (Faixa de 25 até 700°C) precisão +/- 1°C |
30-3 47-4,7 60-6 100-10 |
De 50 até1.000 (Especificar) |
Especificar em mm |
NX - Sem Armadura AC - Com Armadura em Inox |
RBC - Com certificado para 3 pontos |
| APT T | Termopares T (Faixa de -40 até 200°C) precisão +/- 1°C |
|||||
| APT PT1002 | Termorresistência PT100 - 2 Fios(Faixa de -40 até250°C) precisão +/- 0.4°C |
|||||
| APT PT1003 | Termorresistência PT100 - 3 Fios(Faixa de -40 até250°C) precisão +/- 0.2°C |
| Prefix | Calibration | Rod Diameter (mm) | Rod Length (mm) | Cable Length (mm) | Armor Cape | Certificate of calibration RBC |
| APT K | thermocouple K (Range 25 to 700 ° C) Accuracy +/- 1 ° C | 30-3 47-4,7 60-6 100-10 | From 50 to 1,000 (To specify) | To specify (mm) | NX - No Armor AC - With Armor Stainless | RBC - With certificate to 3 points |
| APT T | thermocouples T (Range: -40 to 200 ° C) Accuracy +/- 1 ° C | |||||
| APT PT1002 | RTD PT100 - 2 wires (range -40 to 250 ° C) Accuracy +/- 0.4 ° C | |||||
| APT PT1003 | RTD PT100 - 3 wires (range -40 to 250 ° C) accuracy +/- 0.2 ° C |
Folders
Certificates
Alutal performs tests in all stages of the production process of its sensors. Check below the tests and certifications applicable for this series. If you want to get a copy of the tests for the lot of your purchase, request with the commercial department at the time of your order.
Certificates for this series:
