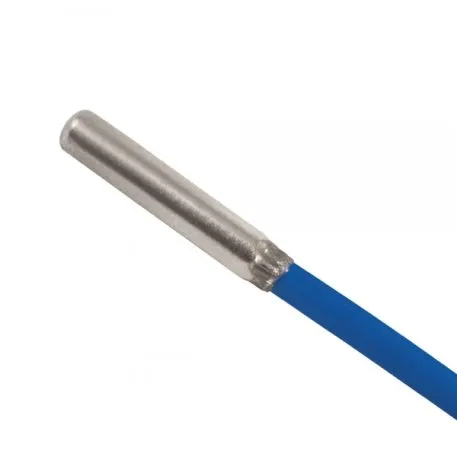

TPON Series
All sensors TPON series are specially designed for use in machines that work with plastic packaging. With special connection cables, resistant plastic melt temperature and resins, these sensors are widely used in industry.
For the temperature range up to 250 ° C, we have the option of providing the sensor without the metal rod using a Teflon capsule that merges into the extension cord, giving a great strength, especially against vibrations and completely sealing against infiltration.
For the temperature range up to 250 ° C, we have the option of providing the sensor without the metal rod using a Teflon capsule that merges into the extension cord, giving a great strength, especially against vibrations and completely sealing against infiltration.
Technical Diagrams
Série TPON
Tables
Tabela Especificação em Português / Specifications Table in English
| Prefixo | Calibração | Faixa de Temperatura |
Diâmetro Haste (mm) |
Comprimento Haste (mm) |
Comprimento Cabo (mm) |
Opções |
| TPON | K / J / PT100 / T | TEF - até 250°C | 30 - 3 40 - 4 47 - 4,7 60 - 6 TFF - Teflon Fundido |
Especificar | Especificar | RBC - Com certificado de Calibração RBC em pontos CG - Conector polarizado macho grande CM - Conector macho polarizado miniatura |
| FV - até 500°C | ||||||
| MIN - até 800°C (apenas calibração K) |
30 - 3 45 - 4,5 60 - 6 |
| Prefix | Calibration | Temperature Range | Rod Diameter (mm) | Rod Length (mm) | Cable Length (mm) | Options |
| TPON | K / J / PT100 / T | TEF - up to 250 ° C PV - up to 500 ° C MIN - up to 800 ° C (Only calibration K) | 30-3 40-4 47 to 4.7 60-6 TFF - Teflon Fused 30-3 45 - 4.5 60-6 | To specify | To specify | RBC - With certificate RBC Calibration points CG - polarized connector large male CM - male connector polarized miniature |
Folders
Certificates
Alutal performs tests in all stages of the production process of its sensors. Check below the tests and certifications applicable for this series. If you want to get a copy of the tests for the lot of your purchase, request with the commercial department at the time of your order.
Certificates for this series:
