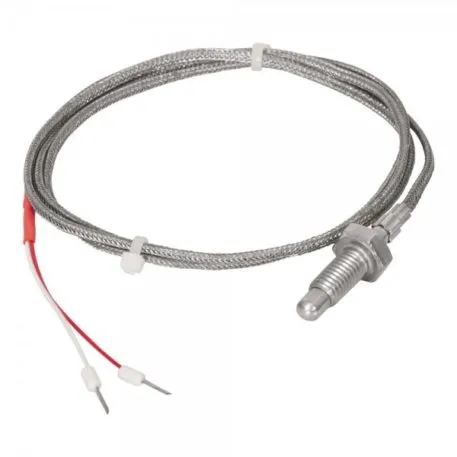

Temperature sensor with Mobile Thread
They are low-cost sensors, ideal for use in the plastic processing industry or in applications where they are needed: easy installation, easy removal and fast response time.
The screw is mounted on a metal tube, which means it will not damage the cord.
THREAD MOBILE SYSTEM THAT PREVENTS CABLE DISRUPTION
The screw is mounted on a metal tube, which means it will not damage the cord.
THREAD MOBILE SYSTEM THAT PREVENTS CABLE DISRUPTION
Technical Diagrams
Sensor de temperatura com Rosca Móvel
Tables
Tabela Especificação em Português / Specifications Table in English
| Prefixo | Calibração | Junção | Rosca | Cabo de Extensão |
Comprimento cabo (mm) |
| TRM | B - Termorresistência PT100 J - Termopar ferro-constantan K - Termopar cromel- alumel T - Termopar cobre-constantan |
JMI - Isolada JMA - Aterrada |
M4 M6 M8 M10 |
PP - PVC x PVC, Bitola 2 x 24 AWG TT - Teflon x Teflon, Bitola 2 x 24 AWG TT1 - Teflon x Teflon, Bitola 3 x 24 AWG FF - Fibra x Fibra, Bitola 2 x 24 AWG FT - Fibra x Fibra, Bitola 2 x 24 AWG, Trança metálica KK - Kapton x Kapton, Bitola 2 x 24 AWG |
Especificar |
| Prefix | Calibration | Junction | Screw | Extension Cable | Cable Length (mm) |
| TRM | B - Termorresistência PT100 J - Termopar ferro-constantan K - Termopar cromel- alumel T - Termopar cobre-constantan | JMI - Isolated JMA - Grounded | M4 M6 M8 M10 | PP - x PVC PVC, Gauge 2 x 24 AWG TT - x Teflon Teflon Gauge 2 x 24 AWG TT1 - x Teflon Teflon Gauge 3 x 24 AWG FF - Fiber x Fiber Gauge 2 x 24 AWG FT - Fiber x Fiber Gauge 2 x 24 AWG metal braiding KK - Kapton x Kapton, Gauge 2 x 24 AWG | To specify |
Notes:
Outras especificações, sob consulta.Other specifications on request.
Certificates
Alutal performs tests in all stages of the production process of its sensors. Check below the tests and certifications applicable for this series. If you want to get a copy of the tests for the lot of your purchase, request with the commercial department at the time of your order.
Certificates for this series:
