Self-Regulating Medium Temperature - HSRM

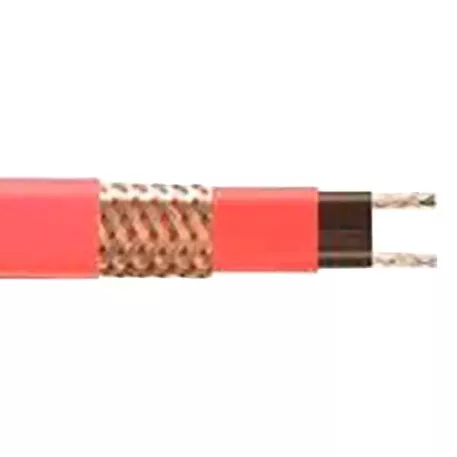

Chromalox HSRM self-regulating heating cable provides safe, reliable heat tracing for freeze protection of pipes, valves, tanks and similar applications. Constructed of industrial grade 16 AWG buss wire with a tinned copper braid and fluoropolymer overjacket, HSRM ensures operating integrity in Div. 1 hazardous environments. HSRM heating cable has a maximum maintenance temperature rating of 302°F (150°C) and a maximum exposure temperature of 420°F (215°C).
WARNING — A ground fault protection device is required by NEC to minimize the danger of fire if the heating cable is damaged or improperly installed. A minimum trip level of 30mA is recommended to minimize nuisance tripping.
  • Self- Regulating, Energy Efficient
  • 16 AWG Buss Wire
  • Circuit Lengths to 750 Feet
  • Process Temperature Maintenance to 302°F (150°C)
  • Maximum Continuous Exposure Temp, Power Off, 420°F (215°C)
  • Freeze Protection of Fire Protection System Piping
  • Available in 5, 8, 10, 15, 20 Watts per Foot
  • Available in 120 and 208-277V models
  • Division 1 Hazardous Locations
  • Approximate Size 3/8"W x 1/8"H
  • Min. Bend Radius 1-1/8"
  • For Use on Metal Pipes Only
  • FM and CSA Approved

Features
  • Energy efficient, self-regulating HSRM uses less energy when less heat is required.
  • Easy to install, HSRM can be cut to any length (up to max circuit length) in the field.
  • HSRM features lower installed cost than steam tracing, less maintenance expense and less down time.
  • HSRM can be overlapped without burnout, which simplifies heat tracing of in-line process equipment such as valves, elbows and pumps.
  • Chromalox HL Connection Kits reduce installation time.

Approvals

FM Approved:

  • Class I, Division 1, Groups B, C, D
  • Class II, Division 1, Groups E, F, G
  • Class III, Division 1
  • 5 and 8 Watt rated T3C Temperature Class
  • 10 Watt rated T3A Temperature Class
  • 15 and 20 Watt rated T2C Temperature Class

CSA Approved:

  • Class I, Division 1, Groups B, C, D
  • Class II, Division 1, Groups E, F, G
  • 5 and 8 Watt rated T3C Temperature Class
  • 10 Watt rated T3A Temperature Class
  • 15 and 20 Watt rated T2C Temperature Class
