The product

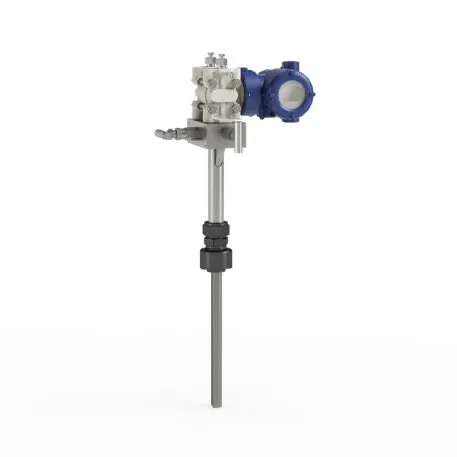

The Verabar® provides the most accurate, reliable technology for measuring gas, liquid and steam as well as the lowest operating and installation costs.
How it Works
When a fluid impacts the sensor, it creates a high-pressure zone in front of the sensor. As the fluid accelerates around the sensor, a low-pressure zone is created to the sides and rear of the sensor. Multiple sensing ports are positioned in these high and low-pressure zones and an averaged differential pressure is measured.
Features and Benefits
- Superior performance in dirty fluids
- Stable signal
- Low permanent pressure loss
- Solid one-piece construction
- ± 1% accuracy
Greater resistance to clogging
Clogging can occur in low-pressure ports located in or near the partial vacuum at the rear of the sensor. The VERIS Verabar® design locates the low-pressure ports on the sides of the sensor, forward of the fluid separation point and turbulent wake area. This virtually eliminates clogging and produces an extremely stable signal.
Verified accuracy
This eliminates the need for calibration tests to characterize the coefficients. Empirical test data from independent laboratories is published in the VERIS Verabar® Flow Test Report (VED-100).
Complete flow loops
Ready to install, the VERIS Verabar® can be ordered with a manifold, transmitter or local indicating meter, flow computer and/or recorder. Complete Installation in less than an hour.
Product Specifications
| Model | Components | Type of Mounting | ||
| Regular Models | V100 | Threaded | Tube Fitting | Single Support |
| V110 | Threaded | Tube Fitting | Double Support | |
| V150 | Threaded | Spring-Lock | No opposite support required | |
| Hot Tap Models | V200 | Threaded or Flanged | Threaded Screw Drive | |
| V400 | Threaded or Flanged | Flanged Screw Drive | ||
| Flanged Models | V500 | Flanged | Flanged | Single Support |
| V510 | Flanged | Flanged | Double Support | |
| V550 | Flanged | Flanged Spring-Lock | No opposite support required |
Certifications
- IBR
- NIBR
