The product

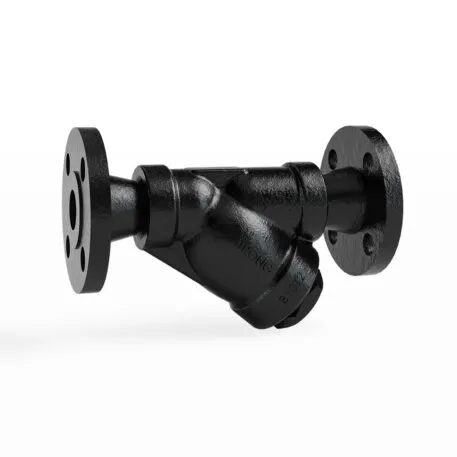

B Series Screwed, Socketweld and Flanged Y-Type Strainers feature screen chambers that won’t leak or crush. Both ends of the chambers are precisely machined. This means perfectly round and smooth seating surfaces, as well as a fixed chamber length. Since the screen seats snugly on the machined surface, no particle bigger than the screen opening can escape around the end of the screen.
SCREWED RETAINERS: EASY IN, EASY OUT
Straight threads mean it takes less torque to achieve a tight seal with proper gasket compression. Less torque is also required to remove the retainer. For you, that means less danger of “freezing in” than with hard-to-break tapered pipe threads.
MANY SCREEN CHOICES
Many screen materials, meshes and perforations are available.
Product Specifications
| Model | B | B-Flanged 150 | B-Flanged 300 | B-Flanged 600 |
| Connection Sizes | 1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm) 2″ (50 mm) 3″ (80 mm) | 1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm) 2″ (50 mm) 3″ (80 mm) 4″ (100 mm) 6″ (150 mm) | 1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm) 2″ (50 mm) 3″ (80 mm) 4″ (100 mm) 6″ (150 mm) | 1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm) 2″ (50 mm) 3″ (80 mm) 4″ (100 mm) |
| Connection Type | Screwed, Socketweld | Flanged Class 150 ANSI B16.5 | Flanged Class 300 ANSI B16.5 | Flanged Class 600 ANSI B16.5 |
| Body Material | Cast Carbon Steel ASTM A216 Gr. WCB | Cast Carbon Steel ASTM A216 Gr. WCB | Cast Carbon Steel ASTM A216 Gr. WCB | Cast Carbon Steel ASTM A216 Gr. WCB |
| Steam Non-Shock | 1,135 psig@562°F (78 bar@294℃) | 205 psig@390°F (14 bar@199°C) | 605 psig@490°F (42 bar@254°C) | 1135psig@562°F (78 bar@294°C) |
| Cold Non-shock | 1,480 psig@100°F (102 bar@38℃) | 285 psig@100°F (20 bar@38°C) | 740 psig@100°F (51 bar@38°C) | 1480 psig@100°F (102 bar@38°C) |
Certifications
- CE
- PED
