AquaGuard PR 30

AquaGuard PR 30 measures up to five parameters directly in the water, without the use of expensive pumps and with zero water loss.

request quote

The product

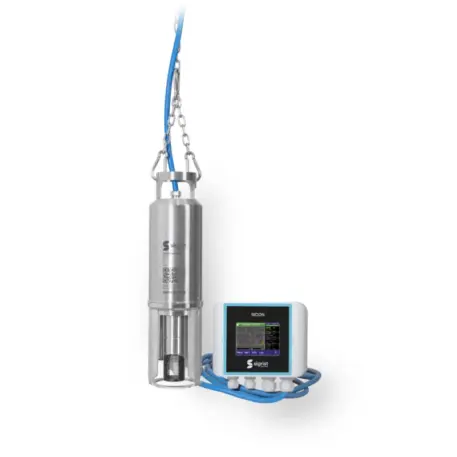

The AquaGuard PR 30 from Sigrist is a portable measuring system that consists of an AquaScat S and can be equipped with up to three probes from Hamilton. In the water industry, the AquaGuard PR 30 serves drinking water treatment.

How the AquaGuard PR 30 works

This allows the AquaGuard PR 30 to be conveniently adapted to the measurement requirements. The SICON M operating device is used for control.

Applications

The AquaGuard PR 30 measures directly in the water:

  • Turbidity
  • pH and temperature
  • Conductivity
  • Dissolved oxygen
  • Redox/ORP

Key features

  • Multiparameter system for direct measurement in water
  • Flexible configuration adapted to individual customer needs
  • Central control unit with touchscreen

Alutal, Sigrist’s exclusive distributor in Brazil for the Water and Industrial Processes segments, would be pleased to show you the possible applications on site or assist you with your projects, providing competent advice and local support in the practical use and service of the AquaGuard PR 30.

request quote
folders
tables

--- ## Technical Specifications

Parameter Value
Measuring principle turbidity 90° scattered light according to ISO 7027 with LED
Nominal range turbidity 0 … 4,000 FNU
Resolution turbidity 0.001 FNU
Sensor type pH pH, Temperature [°C, K, °F]
Sensor type Conductivity 4-Pole measurement
Sensor type Dissolved Oxygen Optical measurement (luminescence)
Sensor type Redox/ORP Potentiostatic measurement against reference
Sample temperature 0 … 50 °C
Sample pressure max. 0.5 MPa (5 bar)
Ambient temperature 0 … 50 °C
Operation voltage 24 VDC +/- 10%
Power consumption max. 8 W (incl. SICON M)
Outputs See SICON M
Inputs See SICON M
Interfaces See SICON M
Options See SICON M
Protection class IP68
Conformities CE, UKCA
Control Units SICON M
