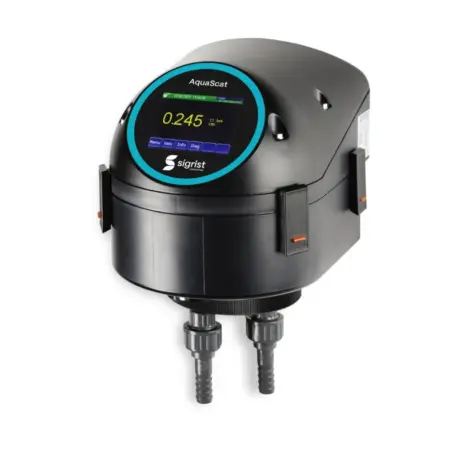

AquaScat 2 P

AquaScat 2 P is an on-line turbidimeter (ISO 7027) for pressurized measurement.

request quote

The product

The AquaScat 2 P from Sigrist measures turbidity of potable water according to IEC 27027. In industrial processes, the AquaScat 2 P serves the petrochemical and refinery sector.

How the AquaScat 2 P works

Calibration check is performed with a calibration unit with a glass reference that is mounted when performing the check.

Applications

The AquaScat 2 P is specially designed for installations with highly gaseous water under pressure.

Key features

  • Dual beam measurement in optimized cell
  • Quick adjustment with secondary standard
  • Lowest stray light levels

Alutal, Sigrist’s sales and service partner in Brazil, would be pleased to show you the possible applications on site or assist you with your projects, providing competent advice and local support in the practical use and service of the AquaScat 2 P.

request quote
folders
tables

Technical Specifications

Parameter Value
Nominal range 0 .. 100 FNU
Measuring ranges 8, freely programmable
Sample flow rate 0.2 .. 2 l/min
Display ¼ VGA, 3.5″
Measuring principle 90° Scattered light according to ISO 7027/EN27027
Operation voltage 18 – 30 VDC
optional 100 .. 240 VAC, 47 .. 63 Hz
Dimensions 207 x 314 x 282 mm (W x H x D)
Protection class IP 65
Resolution 0.001 FNU
Outputs 2x 0/4 .. 20 mA, galv. isolated
2x Relays 250 VAC, 4A
Sample temperature 0 °C .. +40 °C
Light source LED 870 nm
Ambient temperature -10 .. +50 °C
Ambient humidity 0 .. 100% rel. H.
Sample pressure max. 10 bar @20 °C
Operation Touchscreen
Inputs 1 x for flow meter (optional)
2 x 0/4 .. 20 mA
Sample inlet/outlet Hoses of inner ø 16/16 mm or GF-System G¾”
Material POM/PVC
