AquaScat S Mobile

AquaScat S Mobile: highest precision in a suitcase.

request quote

The product

AquaScat S is Sigrist’s proven turbidity probe. The measurement according to ISO 7027 allows for precise turbidity values with a resolution < 0.01 FNU directly immersed in water. The AquaScat S Mobile from Sigrist combines all advantages of the probe in a compact field instrument for practitioners. In the water industry, the AquaScat S Mobile serves drinking water treatment.

How the AquaScat S Mobile works

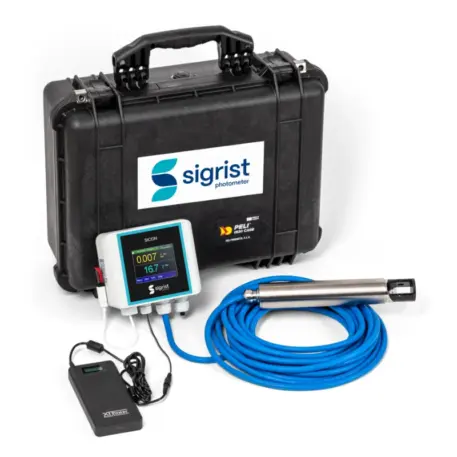

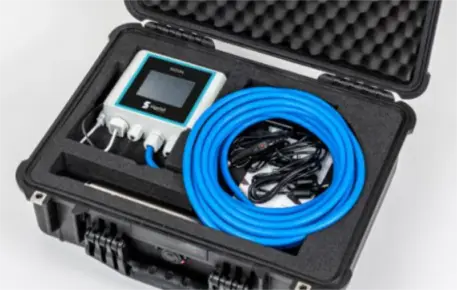

The portable suitcase solution contains an AquaScat S with signal cable as well as a SICON control unit and a power bank with a capacity of 20 h. This self-sufficient system solution offers a fast and reliable turbidity measurement without water loss.

Applications

The AquaScat S Mobile allows:

  • Direct measurement in (drinking) water
  • Sampling of critical points

Key features

  • Direct measurement in (drinking) water
  • Possibility of sampling critical points
  • Self-sufficient operation up to 20 h with power bank

Alutal, Sigrist’s exclusive distributor in Brazil for the Water and Industrial Processes segments, would be pleased to show you the possible applications on site or assist you with your projects, providing competent advice and local support in the practical use and service of the AquaScat S Mobile.local support in the practical use and service of the AquaScat S Mobile.

request quote
folders
tables

Technical Specifications

Parameter Value
Measuring principle 90° Scattered light according to ISO 7027/EN27027
Light source LED 870 nm
Nominal range 0 .. 4,000 FNU
Resolution 0.001 FNU
Accuracy 1% or ± 0.002 FNU
Sample temperature 0 .. +60 °C
Temperature measurement 0.1 °C
Sample pressure max. 10 bar @ 20 °C
Protection class IP68
Operation voltage 24 VDC +/−10 %, galv. isolated from housing of sensor
Power consumption max. 2 W
Enclosure Stainless steel 1.4571, PPSU (absorber), sapphire windows
Dimensions Ø 40 × 200 mm
