The product

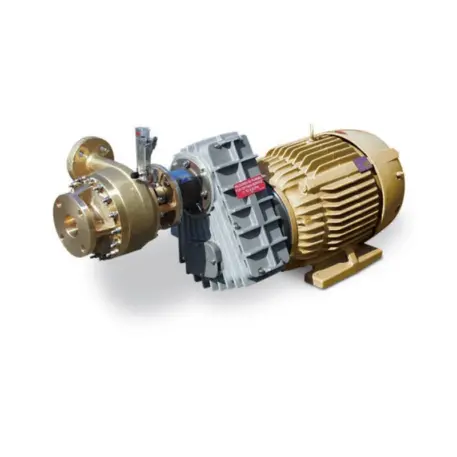

The Cryogenic Belt Box Pump AC/TC-21, by Nikkiso ACD, serves liquid storage transfer, liquid cylinder filling and trailer off-loading. It pumps nitrogen, oxygen, argon and methane. The line includes the .75 x 1 x 4, 1 x 2 x 4.5, 1 x 2 x 6, 1 x 2 x 6-25 and 1.5 x 2.5 x 6C sizes. In the 1.5 x 2.5 x 6C size, the flow range is 10 – 180 gpm (35 – 680 lpm).
How the Cryogenic Belt Box Pump AC/TC-21 works
The AC/TC-21 uses a belt drive design. As a result, the pump runs at higher speeds.
A belt tension mechanism increases the life of the timing belt and bearings. In addition, the belt drive components have “full tooth engagement”. This way, the drive offers greater capacity and longer life.
The belt housing is also built in lightweight aluminum. Therefore, the construction reduces overall pump weight.
Applications
- Liquid storage transfer
- Liquid cylinder filling
- Trailer off-loading (ground mount)
- Test facility support
- Laboratory research
Liquids pumped: nitrogen, oxygen, argon and methane.
Features and Benefits
- Bearing purge ports are provided for liquid oxygen applications
- Cold end can be removed as a single piece, simplifying maintenance
- All bronze construction allows for O2 compatibility
Typical Scope of Supply
- Pump, belt box and TEFC motor
- Grease packed bearings
- Motor purge ports
- Long life mechanical seal (CFS)
