The product

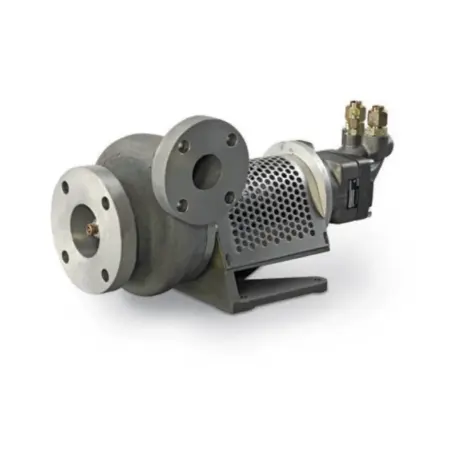

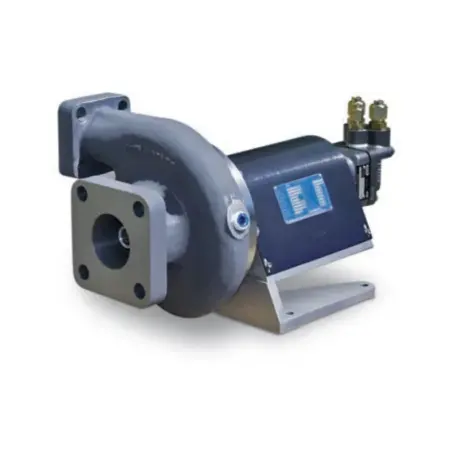

The Cryogenic Boost Pump AC-18 (HD), by Nikkiso ACD, serves well service, transfer boost and trailer off-load duties. It pumps nitrogen, argon and methane, with a flow range of 5 – 500 gpm (20 – 1,900 lpm).
How the Cryogenic Boost Pump AC-18 (HD) works
The AC-18 (HD) has a hydraulic drive. As a result, operators can use the truck PTO system to drive the pump.
The shaft seal also features a CFS design. Therefore, the mechanical seal offers extended seal life.
Sizes 1 x 2 x 4.5 and 1.5 x 2.5 x 6 have a left hand discharge. Sizes 2 x 3 x 6 and 2 x 4 x 6 have a right hand discharge.
Applications
- Well service
- Transfer boost pump
- Trailer off load
Liquids pumped: nitrogen, argon and methane.
Features and Benefits
- Compact design is lightweight and reduces installation time
- Bearing housing designed for well service, heavy duty applications
- Hydraulic drive allows operators to use the truck PTO system
- Shaft seal features CFS design, extending seal life
Typical Scope of Supply
- Pump, bearing housing and hydraulic coupling
- CFS mechanical seal
- Purge ports
Optional Accessories
- Purge kit (bearings)
- Mating flanges
