The product

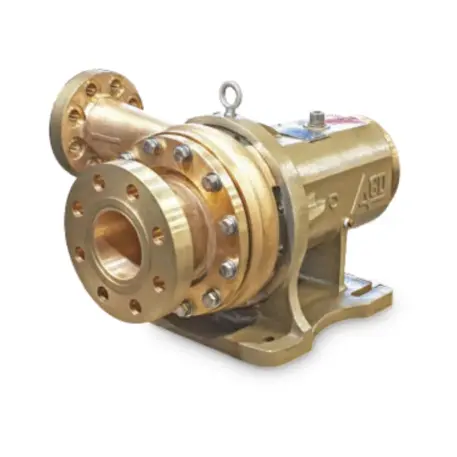

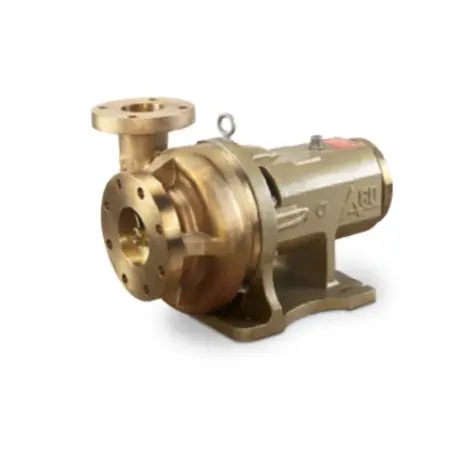

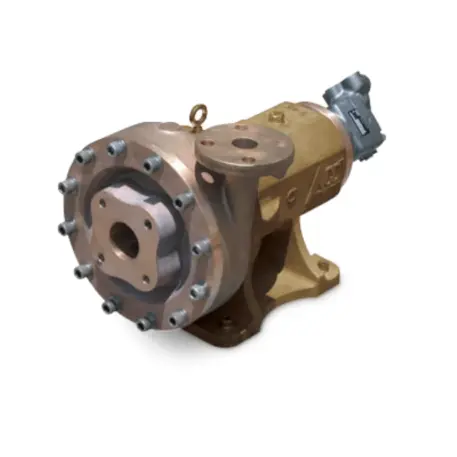

The Cryogenic Trailer Off-Loading Pump TOP Series, by Nikkiso ACD, serves trailer off-loading of nitrogen, oxygen, argon and methane. The series includes three models: TOP 7.6M, TOP 215 and TOP 260 H. The TOP 215 reaches a flow rate of 950 gpm (3,600 lpm).
How the Cryogenic Trailer Off-Loading Pump TOP Series works
The TOP Series accepts hydraulic or jackshaft drive. The bearing housing is oil-lubricated. As a result, it ensures lubricity of components and improves bearing life.
In addition, cylindrical roller bearings strengthen capacity for lateral loads.
Applications
- Trailer off-loading
Liquids pumped: nitrogen, oxygen, argon and methane.
Features and Benefits
- Mechanical component seal design with composite face material
- Oil-lubricated bearing housing ensures lubricity of components and improves bearing life
- Cylindrical roller bearings strengthen capacity for lateral loads
- Hydraulic or jackshaft drive
Component Seal Exchange
- Ease of installation reduces downtime
- Allows field exchange without removing the pump from the trailer
- Seal features composite face material
- No need to disconnect discharge piping
Bearing Housing
- Uses hydrocarbon or oxygen compatible oil
- Designed in compliance with CGA G-4.7 and EIGA/IGC 148/08/E guidelines for centrifugal oxygen pumps
- Up to 6,000 hours life, equivalent to 3 seal exchanges
- Best lubricated bearings in the industry
