The product

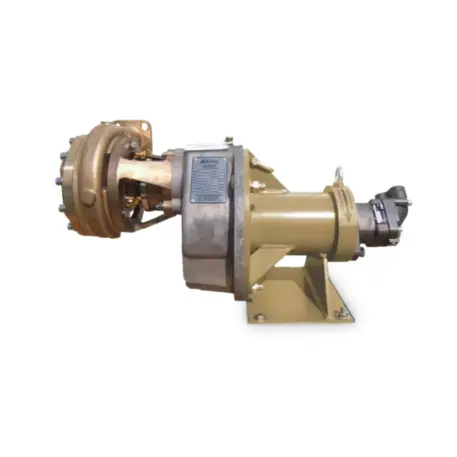

The Cryogenic Trailer Pump CPLH, by Nikkiso ACD, serves trailer and container loading and unloading, liquid storage transfer and process pump duties. It pumps nitrogen, oxygen, argon and methane, with a differential head of 328 – 1286 ft (100 – 392 m).
How the Cryogenic Trailer Pump CPLH works
A fixed speed electric motor drives the CPLH via an oil lubricated gearbox. In addition, an inducer lowers the NPSH requirement.
The shaft seal is a CFS mechanical seal. As a result, the pump delivers long life performance.
The impeller wear ring also reduces maintenance and improves efficiencies.
Applications
- Trailer and container loading and unloading
- Liquid storage transfer
- Process pumps
Liquids pumped: nitrogen, oxygen, argon and methane.
Features and Benefits
- Multiple configurations and sizes accommodate lots of duties and applications
- Suits a large range of flow rates
- Intermittent use
- Impeller wear ring reduces maintenance and improves efficiencies
- An inducer lowers the NPSH requirement
- CFS mechanical shaft seal for long life performance
