Power Connection Kit

RTPC Power Connection Box is a NEMA 4X rated junction box designed to connect all Chromalox Rapid Trace Heating Cables to customer supplied power wiring. This kit provides waterproof cable entry for up to three cables, enclosure support, terminal block and a waterproof, corrosion resistant wiring enclosure with an opening to accept a 3/4" conduit hub (Chromalox CCH-2 or equal). A pipe strap (Chromalox PS or equal) is required to attach this model to a pipe.

request quote

The product

Use with: SRL, SRP, SRM/E, CWM
NEMA 4X Enclosures
Cable Entry for 1 cable
3/4″ Conduit Hub Opening
Stainless Steel Hardware
Corrosion & Weather Resistant Ryton® Construction
Third-party certifications: UL Listed, CSA, FM

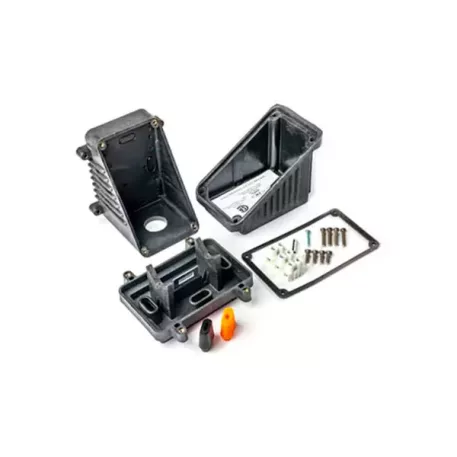

RTPC — Power Connection Kit

1 molded junction box consisting of:
- 1 base
- 1 box w/conduit opening
- 1 lid
1 three position terminal block
1 mounting screw for terminal block
1 GRSR self-regulating cable sealing grommet
1 GRCW constant wattage sealing grommet

Applications

Connection of all Rapid Trace Heating Cables to Customer Supplied Power Wiring in any of the following applications:

Hydrocarbon and Chemical Product Piping
Process Temperature Maintenance
Fluid Flow and Viscosity Maintenance
Freeze Protection.

Features

Molded of Durable Plastic Material (Ryton®‚ PPS)*
High Service Temperature
Corrosion Resistant
Integrated Connection Accessories and Controls
Thermal Stability DL Integrated Connection Accessories
Non-Flammable
High Strength and Rigidity
Stainless Steel Hardware to Ensure the Integrity of the System
Liquid Tight Design prevents moisture from reaching the electrical connections. All models are rated NEMA 4X.
