Imagem descritiva do produto Optical Pyrometer - CellaTemp® PA 28 (75 – 650 °C)

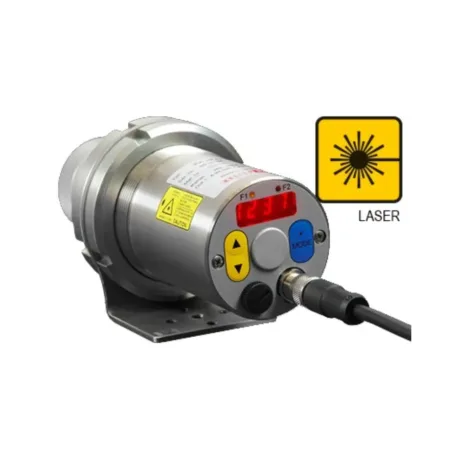

Optical Pyrometer - CellaTemp® PA 28 (75 – 650 °C)

The CellaTemp® PA 28 is a digital pyrometer for measuring temperatures from 75 to 650 °C. The pyrometer was specially developed for measurements on metals at very low object temperatures from 75 °C.

request quote

The product

Special features:

Measuring range 75 to 650 °C
focusable lens for exact adjustment of the measuring distance
broadband anti-reflective precision lens
especially suited for measurements on metals
LED display can be read from a great distance
test current output for the diagnostic function
standard feature: digital input/output as well as two analogue outputs and USB/RS 485 interface

request quote

tables

CellaTemp PA 28 (75 - 650 °C)

Version	CellaTemp PA 28 AF 10 /D
Measuring range	75 – 650 °C
Focus distance	0,3 m – ∞
Shape of the measuring field	round
Distance ratio	48 : 1
Objective	PZ 20.08
Measuring principle	one-colour
Sighting option	Through-the-lens-sighting
