The product
Special features:
- Measuring range 700 to 1,800 °C

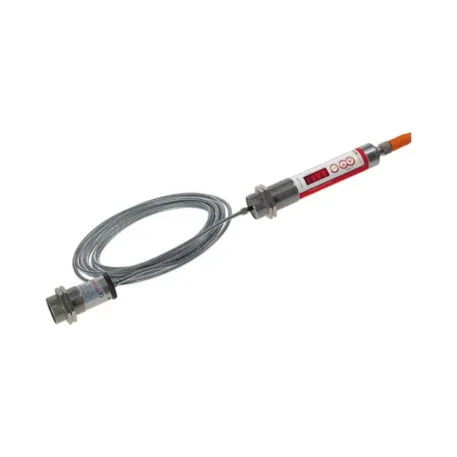

- fibre optic cable version up to 50 m length possible
- switching output universally configurable
- high optical resolution due to precision lenses
- IO-Link interface
- all parameters can be set via pushbutton on the sensor or via interface from the plant control system
- test function can be triggered by pushbutton or control signal

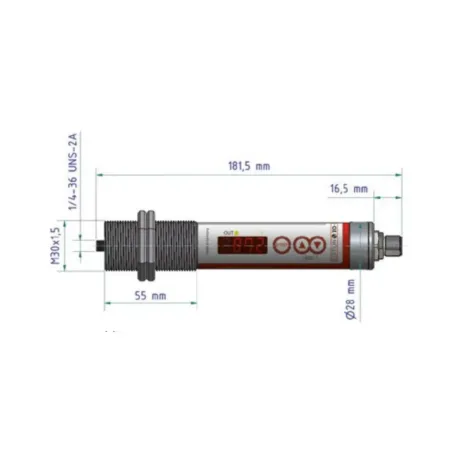

- very simple mounting via M30 central thread

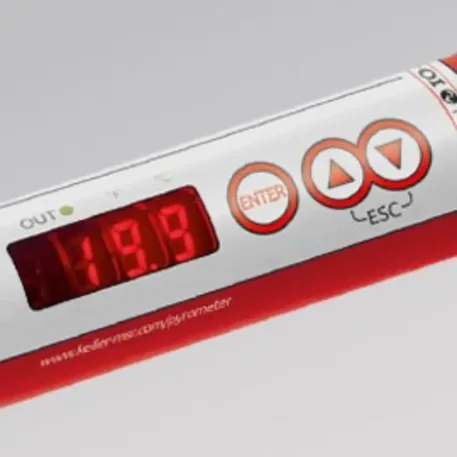

- large and bright LED display
| Version |
CellaTemp PKF 66 AF 1 |
|---|---|
| Measuring range |
700 – 1800 °C |
| Focus distance |
0,2 m – ∞ |
| Shape of the measuring field |
round |
| Distance ratio |
190 : 1 |
| Measuring head |
PA 41.01 |
| Measuring principle |
two-colour |
| Sighting option |
Laser pilot light |
