Optical Pyrometer - CellaTemp® PX 41 (800 – 3000 °C)

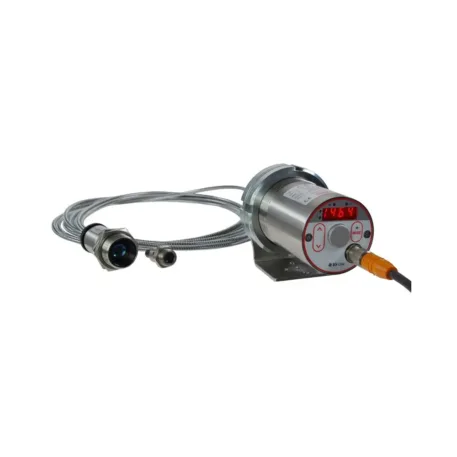

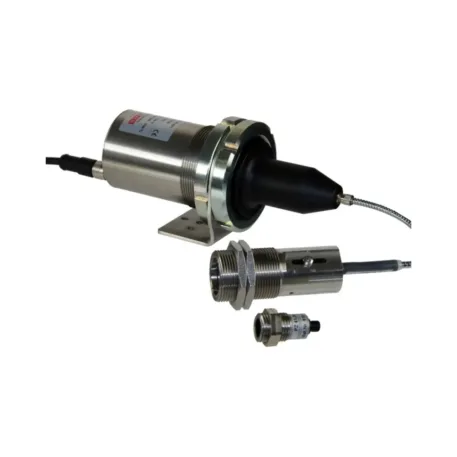

The CellaTemp® PX 41 is a digital two-colour pyrometer with a fibre optic cable for measuring temperatures between 700 and 3,000 °C. The two-colour pyrometer is equipped with a separate optical measuring head and a fibre optic cable. The fibre optic cable and measuring head are insensitive to interference from electromagnetic radiation and can be used in ambient temperatures up to 250 °C without cooling. The variant with separate optical measuring head has advantages especially in confined spaces.

request quote

The product

Special features:

  • Measuring range 700 to 3,000 °C
  • modern IO-Link interface
  • focusable interchangeable lenses for exact adjustment of the measuring distance
  • broadband anti-reflective precision lenses
  • LED display can be read from a great distance
  • all parameters and functions adjustable via keyboard
  • test current output for the diagnostic function
  • 1 analogue output and 2 switching outputs
  • source freely configurable
  • ATD function for automatic temperature detection
  • measuring head and fibre optic cable heat resistant up to 250 °C
CellaTemp   PX 41 AF 11
Measuring   range
800 –   2400 °C
Focus   distance
0,2 m –   ∞
Shape of   the measuring field
Distance   ratio
190 :   1
Measuring   head
PA   41.01
Measuring   principle
Sighting   option

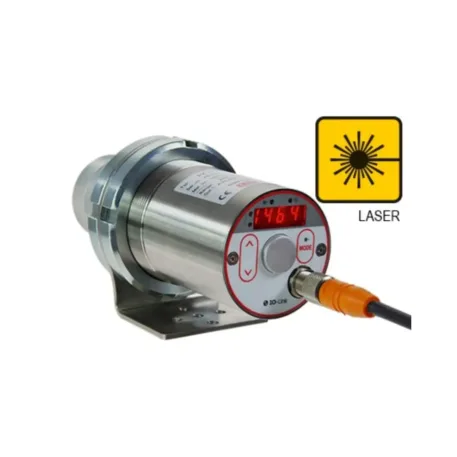

Laser   pilot light
