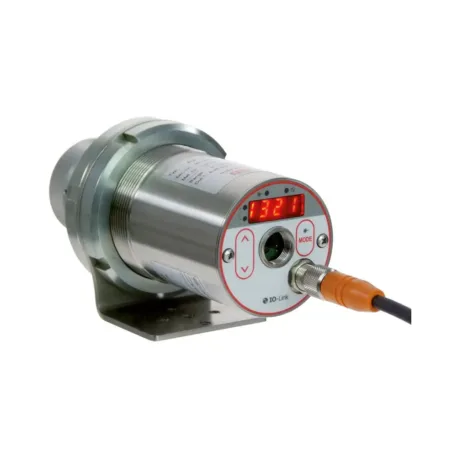

Optical Pyrometer - CellaTemp® PX 60 (300 – 1000 °C)

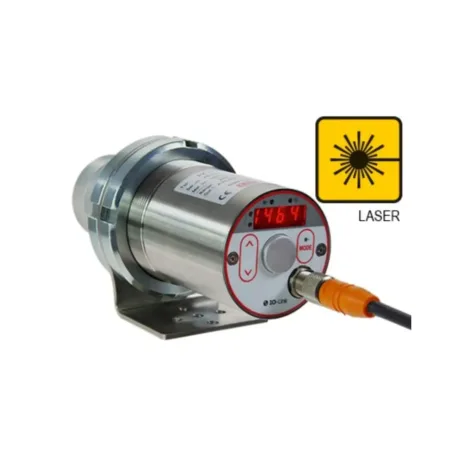

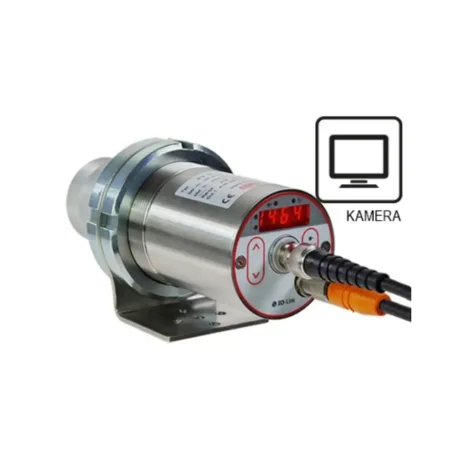

The CellaTemp® PX 60 is a digital two-colour pyrometer for measuring temperatures from 300 to 1,000 °C. Due to the two-colour measuring method, this device reacts less sensitively to interferences from dust in the field of view, dirty protective windows or changing measuring surfaces than a single-colour pyrometer. A through-the-lens sighting, a laser pilot light or a camera module is available for easy and precise sighting of the measuring object.

request quote

The product

Special features:

  • Measuring range 300 to 800 °C
  • modern IO-Link interface

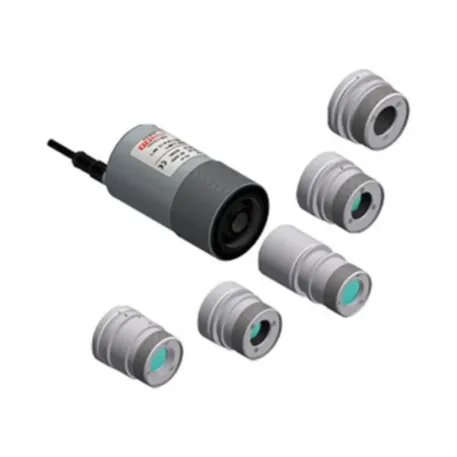

  • focusable interchangeable lenses for exact adjustment of the measuring distance
  • broadband anti-reflective precision lenses
  • LED display can be read from a great distance
  • all parameters and functions adjustable via keyboard
  • test current output for the diagnostic function
  • 1 analogue output and 2 switching outputs
  • source freely configurable
  • ATD function for automatic temperature detection
  • SCM function for monitoring contamination

Version

CellaTemp   PX 60 AF 1 /D

Measuring   range

300 – 800   °C

Focus   distance

0,3 m –   ∞

Shape of   the measuring field

round

Distance   ratio

39 :   1

Objective

PZ   20.08

Measuring   principle

two-colour

Sighting   option

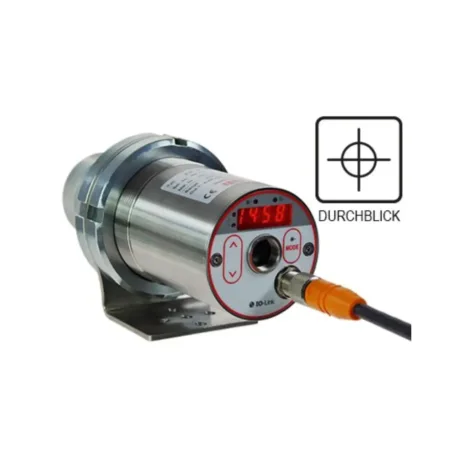

Through-the-lens-sighting
