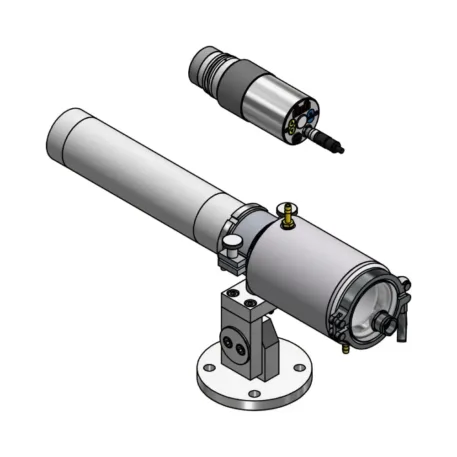

Optical Pyrometer - Measuring System PA 10-K003 (0 – 1000 °C)

Measuring system consisting of: • Pyrometer CellaTemp PA 10 AF 1 • Mounting PA 83-010

request quote

The product

Special features:

  • Universal pyrometer with focusable optics in a stainless steel housing
  • broadband anti-reflective precision lens
  • 2 analogue outputs, 2 switching outputs, USB and RS 485
  • Sighting aid: laser pilot light
  • Mounting fitting with cooling fitting and air purge for industrial use, with flexibly adjustable holding device
request quote
tables

Measuring System PA 10-K003 (0 – 1000 °C)

Version

CellaTemp PA 10-K003

Measuring range 0 – 1000 °C
Focus distance 0,3 m – ∞
Shape of the measuring field round
Distance ratio 50 : 1
Objective PZ 10.01
Measuring principle one-colour
Sighting option Through-the-lens-sighting
