Optical Pyrometer - Measuring System PA 40-K020 (650 – 1700 °C)

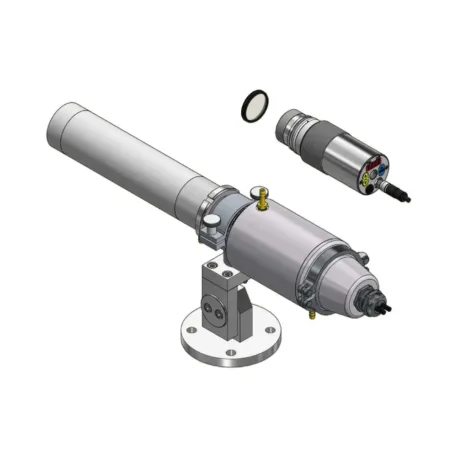

Measuring system consisting of: • Pyrometer CellaTemp PA 40 AF 1 • Mounting PA 83-011 • Quartz protective window 70146

request quote

The product

Special features:

  • Two-colour pyrometer with focusable optics in a stainless steel housing
  • broadband anti-reflective precision lens
  • 2 analogue outputs, 2 switching outputs, USB and RS 485
  • Sighting aid: through-the-lens sighting
  • Mounting fitting with cooling fitting and air purge for industrial use, with flexibly adjustable holding device
request quote
tables

Measuring System PA 40-K020 (650 – 1700 °C)

Version

CellaTemp PA 40-K020

Measuring range 650 – 1700 °C
Focus distance 0,4 m – ∞
Shape of the measuring field round
Distance ratio 80 : 1
Objective PZ 20.01
Measuring principle two-colour
Sighting option Through-the-lens-sighting
