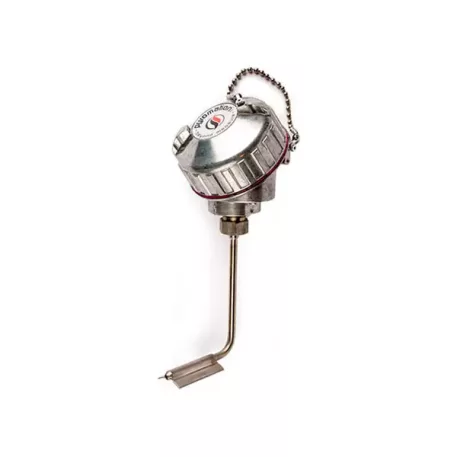

Heat Trace Or Pipe Sensor

For measuring the surface temperature of process piping that is carrying products whose temperatures must be controlled to prevent freeze-up, or to maintain a viscosity level so that the inner medium will flow. The Thermocouple or RTD Sensor Element is made up with a 316SS sheath, and with a stainless steel mounting pad. Cold legs are available in customer specified lengths to accommodate pipe insulation thickness.

request quote

The product

  • Heat Trace or Pipe Sensing Applications
  • 316 Stainless Steel Sheath
  • Moisture Resistant Heads
  • 3/4″ or 1/2″ NPT Threaded Extension Wire Opening
  • 4″ to 8″ Cold Leg Standard for Varying Insulation Depths
  • 100 ohm RTD, ± 0.12% Accuracy
  • Fiberglass Insulated RTD Probe
  • RTD or Universal Transmitter Available (Must Specify Temperature Range)
request quote
