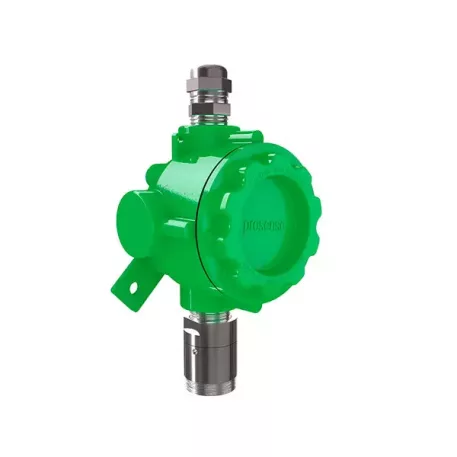

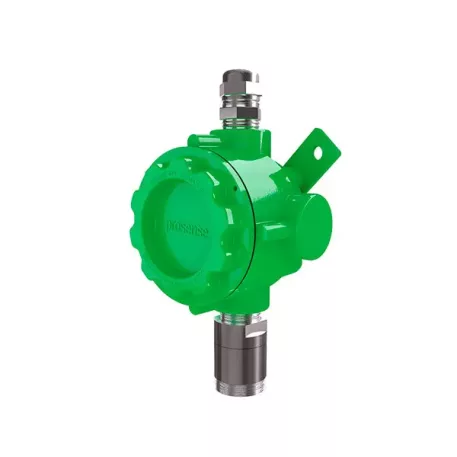

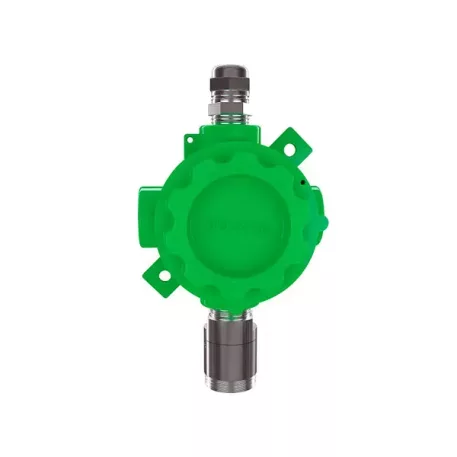

PE Series

ATEX/IECEx certified "PE" Series ex-proof gas detectors are designed and developed to detect explosive compounds in many applications as a cost-effective solution. Catalytic sensors employed PE Series provide excellent output in 0-100%LEL.

solicitar orcamento

The product

• Sensor: Uses high-quality catalytic sensor specially designed to detect LPG, Methane, Petrol Vapour, Butane, Propane, and Hydrogen gases in 0-100%LEL.
• Certification: ATEX and IECEx certified PE Series ready to use in explosive atmosphere safely
• Connection: Provides universal standard 4-20mA analog output
• Entry: 1 x 1/2? NPT cable entries
• Body: Aluminium die-cast body and sensor head superb performance under harsh environmental conditions with IP65 protection class.
• Remote Control: Detector status can be monitored Prosense Gas Monitoring software remotely.
• Relay Contacts: PE-2R+ relay module integrated PE Series detectors can manage other equipments or link to firefighting panels.

Specification

Sensor Technology Catalytic
Output Signal 4-20mA Analog
Accuracy %1
Sensor Warm-Up 60sec
Operating Temperature -40°C ~ +70°C
Response Time(T90) <15sec
Humidity 5 ~ 95%RH Non-Condensing
Input Min 10VDC – Max 28VDC – Nominal 24VDC
Power Consumption Max. 4W
Relay Outputs 2 Relay Contacts (Alarm1-Fault or Alarm1-Alarm2)
IP Rating IP65
Junction Box Epoxy Painted Die-Cast Aluminum
Sensor Head Nickel-Plated Brass
Dimensions/Weight 172,5×118,15x88mm / 1150gr
ATEX Marking II 2G Ex db IIC T4-T5 Gb
Hazardous Class Zone 1 or Zone 2
Certificates IMQ 19 ATEX 045 X
IECEx IMQ 18.0009X
Standards IEC EN 60079-0
IEC EN 60079-1
IEC EN 60079-18


Gases

• LPG – (LPG)
• Methane-CH4 – (Methane-CH4)
• Petrol Vapour-Gasoline – (Petrol Vapour-Gasoline)
• Butane-C4H10 – (Butane-C4H10)
• Propane-C3H8 – (Propane-C3H8)
• Hydrogen-H2 – (Hydrogen-H2)
