Temperature Transmitter 4 to 20 mA - TR213

The TR213 USB is a 4-20 mA, head-mount, loop-powered temperature transmitter. The output current represents the signal applied to the transmitter input linearized as a function of the configured input type.

request quote

The product

Its configuration is carried out by connecting the transmitter directly to the PC’s USB port.

Features:

  • • Multiple signal types supply
  • Internal cold junction compensation from 4-20 mA input to output
  • RTD, TC, resistance, voltage (mV) input
  • Configuration by PDA or PC communicator
  • 2 types of resistance thermometer (RTD) input
  • 8 types of thermocouples (TC)

Specifications:

  • Output Signal: 4-20mA
  • Max. Load: Max. (Power Supply V -7.5V) / 0.22A
  • Measurement: Linear Voltage, Linear Resistance and Circuit Limit: <= 22mA
  • Response Time: <= 1s
  • Output Current: Minimum 3.9mA / Maximum 20.5mA
  • Alarm Current: 3.9mA or 22mA (except TC)
  • Accuracy: 0.1% FS (Measurement accuracy is related to the measurement range)
  • Power Supply: U = 12V to 40V
  • Storage Temperature: -40 to 100°C
  • Protection: IP00; IP66 (Mounted)
  • Vibration Resistance: 4g/2 to 150Hz
  • Mounting Angle: No Limit
request quote

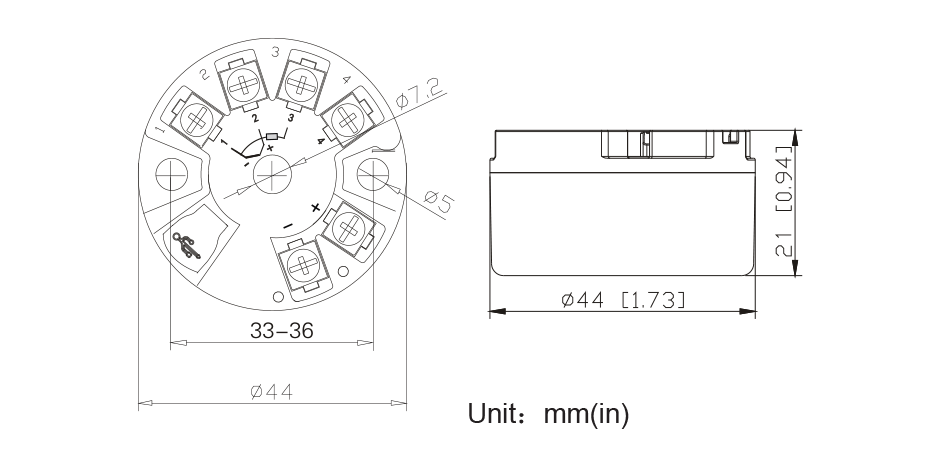

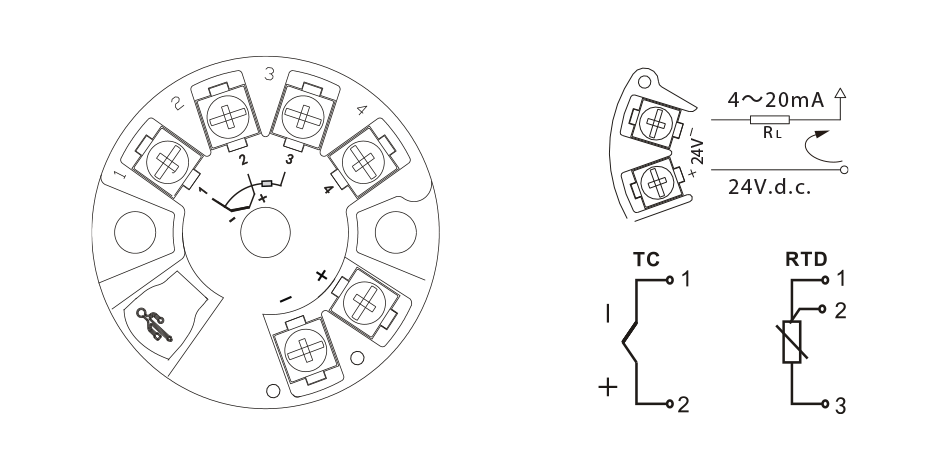

technical diagrams
folders
Array
desenho-2-0230
Array
desenho-1-6955
