The product

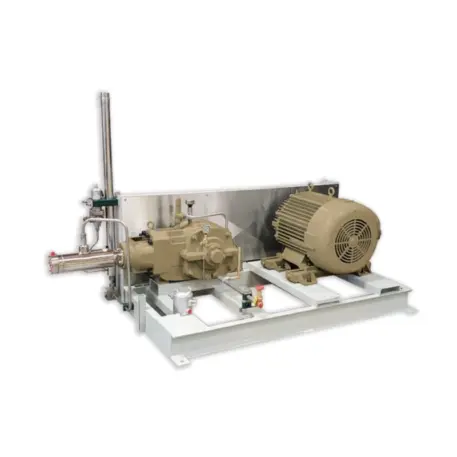

The Cryogenic Fuel Station Pump MP-100, by Nikkiso ACD, is a modular displacement pump for LH2 fueling stations, storage filling and special medium to heavy duty applications. It pumps nitrogen, oxygen, argon, methane and hydrogen, with a maximum discharge pressure of up to 13,000 psi (900 bar).
How the Cryogenic Fuel Station Pump MP-100 works
The MP-100 is a modular, compact displacement pump. As a result, it is available in 1, 2, 3 or 5 cylinder configurations that provide a wide range of flows.
The cold end is vacuum jacketed. Therefore, the pump minimizes cool-down losses and runs economically, which makes it ideal for liquid hydrogen.
The drive is pressurized oil lubricated, with an integral oil pump and reservoir. This way, it allows higher bearing loads and prevents oil leakage.
Applications
- Storage filling
- Special medium to heavy duty applications
- Continuous duty applications
- LH2 fueling station applications
- Marine fuel gas systems
Liquids pumped: nitrogen, oxygen, argon, methane and hydrogen.
Features and Benefits
- 1, 2, 3 or 5 cylinder configurations provide a wide range of flows
- Compatible with an external oil cooler or lube system for continuous duty applications
- State-of-the-art internal sealing design for high efficiency and minimized losses
Typical Scope of Supply
- Vacuum jacketed cold end with pressure oil lubricated drive end
- Standard suction adapter with Monel strainer
- Distance piece with purge ports
- Hot dipped galvanized steel skid
- TEFC motor
- High pressure relief valve with discharge line and surge chamber
- Drip pan kit for LH2 applications
- Suction/vapor return manifold for multiple cylinder configurations
