SEC Series
Drying is a very delicate and complex step in the manufacture of ceramics process. It is common at this stage occur drying of defective parts and are noticeable only after firing, therefore, correct measurement of the temperature in the drying process is very important.
The sensors of the series SEC, manufactured by Alutal, are robust, precise, high reproducibility of measurements, low installation costs, operation and maintenance.
The sensors of the series SEC, manufactured by Alutal, are robust, precise, high reproducibility of measurements, low installation costs, operation and maintenance.
They are tested in our thermometry laboratory, accredited by CGCRE under the CAL-0522 number, in compliance with standard ISO / IEC 17025, ensuring the accuracy thereof.
Technical Diagrams

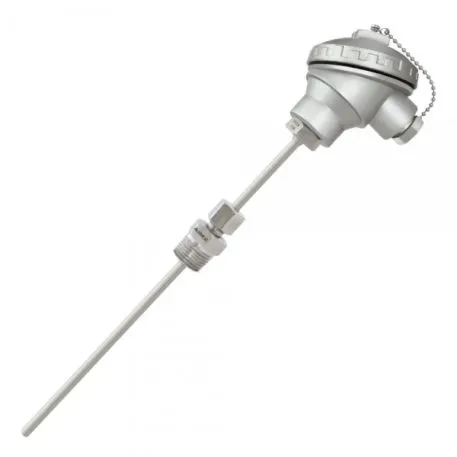

TIM13 - Termopar isolação mineral reto com cabeçote grande
Tables
Tabela Especificação em Português / Specifications Table in English
| Prefixo | Calibração | Diâmetro Haste (mm) |
Comprimento "U" (mm) |
Conexão | Opções |
| SEC | K - Termopar tipo K J - Termopar tipo J |
3 6 |
Especificar | 000 (Sem Rosca) 10B - 1/8” BSP 10N - 1/8” NPT 14B - 1/4” BSP 14N - 1/4” NPT 21B - 1/2” BSP 21N - 1/2” NPT 27B - 3/4” BSP 27N - 3/4” NPT |
RBC - Certificado de calibração em 3 pontos |
| Prefix | Calibration | Rod Diameter (mm) | "U" Length (mm) | Connection | Options |
| SEC | K - K-type thermocouple J - Thermocouple J | 3 6 | To specify | 000 (Threadless) 10B - 1/8 "BSP 10N - 1/8 "NPT 14B - 1/4 "BSP 14N - 1/4 "NPT 21B - 1/2 "BSP 21N - 1/2 "NPT 27 B - 3/4 "BSP 27N - 3/4 "NPT | RBC - Certificate calibration 3 points |
Certificates
Alutal performs tests in all stages of the production process of its sensors. Check below the tests and certifications applicable for this series. If you want to get a copy of the tests for the lot of your purchase, request with the commercial department at the time of your order.
Certificates for this series:
