The product

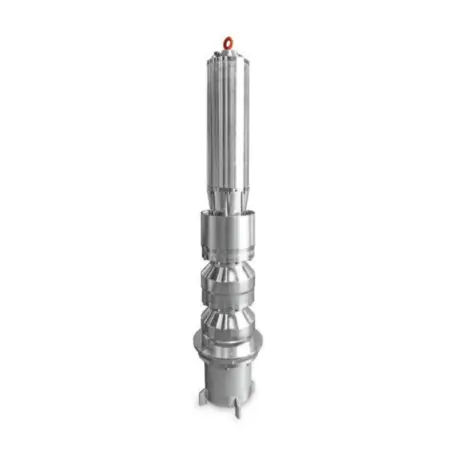

The Cryogenic Vertical Turbine Pump VTK, by Nikkiso ACD, is a state-of-the-art submerged motor pump. It serves barge-to-ship and ship-to-ship bunkering, low pressure marine fuel systems and FSRU loading and off-loading. The VTK pumps nitrogen, argon, ethylene, ethane, methane and propane, with a flow range of 1,000 – 2,500 gpm (3,785 – 9,462 lpm). The line is available in multiple sizes, including the VTK-240.
How the Cryogenic Vertical Turbine Pump VTK works
The VTK is highly efficient, at over 70%. As a result, it lowers operating costs and heat input into the fluid.
The design is modular, at 60 PSI per stage. In addition, high efficiency hydraulics work with an extremely low NPSHR inducer.
The pump features a permanent magnet motor and heavy duty ceramic bearings. An active thrust balancing system also extends bearing life. A special design VFD drive provides operation point control over the entire pump operating range.
Applications
- Bunkering: barge-to-ship
- Low pressure marine fuel systems
- Send-out pump
- Liquid storage transfer
- Bunkering operations: ship-to-ship
- Pipeline feed
- FSRU loading/off-loading
- Railcar tender car loading and unloading
Liquids pumped: nitrogen, argon, ethylene, ethane, methane and propane.
Features and Benefits
- Lightweight and compact
- Available in sump and in-tank designs
- Quick electrical disconnect for ease of maintenance
- All parts from wrought aluminum are precision machined
- Vacuum jacketed sump
Complete Pumping System
- High-efficiency submerged pump
- Removable in-tank with foot valve
- Custom made VFD drive, factory string tested
- Dual electrical feed thru, hermetically sealed up to 500A
Optional Accessories
- Differential pressure gauge
- Loss of prime detector (cavitation protection)
- Safety relief valve
- Dual conduit box per NFPA standards for LNG services
- Complete removal systems
- Long term storage container
